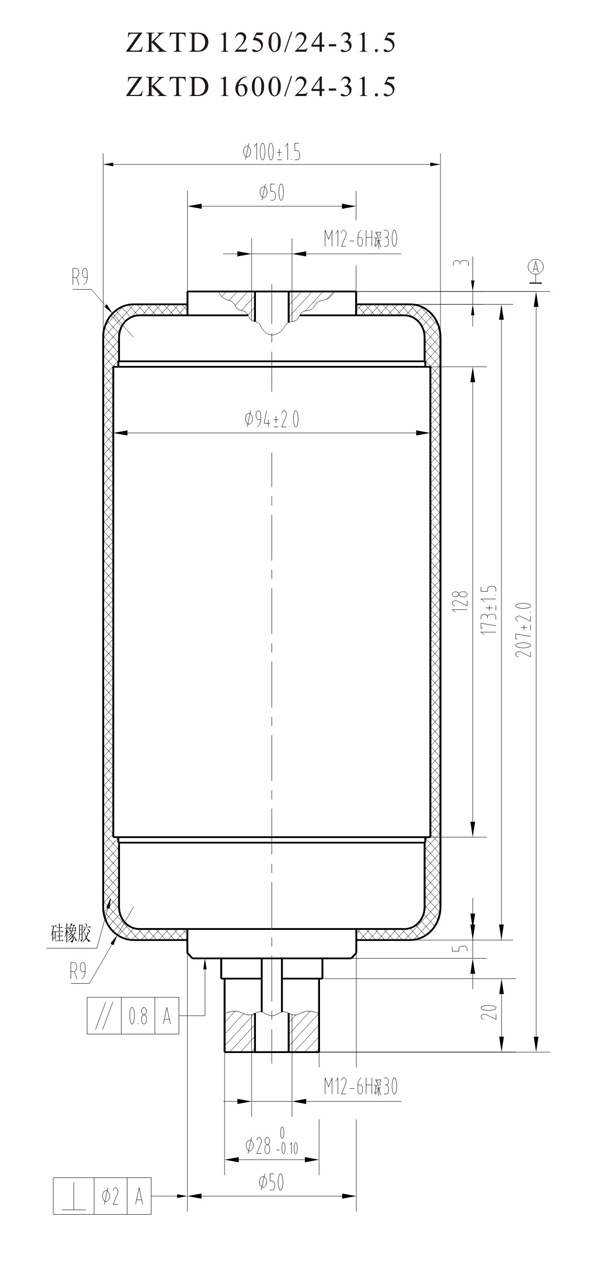

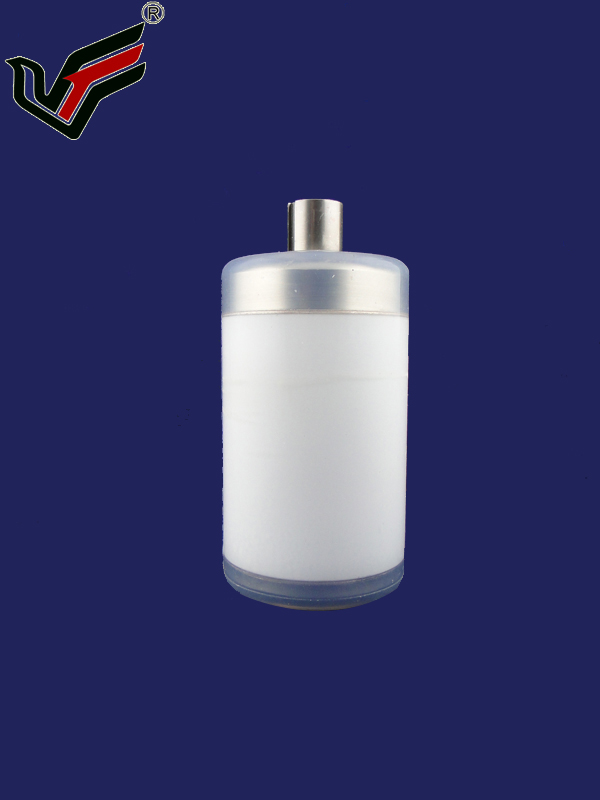

ZKTD1600/24-31.5 TD42601GF

Main Technical Data
Rated voltage                                             kv 24
Rated current                                             A 1250/1600
Rated frequency                                          Hz 50
Rated short-time power frequency withstand voltage(1min)      kv 79
Rated lighting impulse withstand voltage                      kv 145
Rated short-circuit breaking current                          kA 31.5
Rated short-circuit making current(peak)                     kA 80
Rated operations of short-circuit breaking current interruption    times 20
Rated single capacitor bank breaking current                   A 400
Rated short-time withstand current                          kA 31.5
Rated peak withstand current                                kA 80
Rated duration of short-circuit                               s 4
Mechanical life                                            times 30000
Contact closing force due to bellows and atmosphere           N 120±50
Counterforce at rated contact stroke                           N 190±60
Three-pole simultaneity                                      μΩ 20
Shelf life                                                   years 20
Contact erosion limit                                        mm 3
Weight of moving parts                                                                              kg ≤1.2
Mechanical Data Required For Matched Vacuum Switchgear
Rated contact stroke                                       mm 13±1
Average opening speed                                    m/s 1.2±0.25
Average closing speed                                     m/s 0.7±0.15
Added contact force                                        N 3150±200
Contact bouncing duration at closing operation                 ms 2
Contact bouncing bank amplitude of opening operation          ms 2
Three-pole simultaneity                                      ms 1
Note:Rated characteristics can be given on requirment
